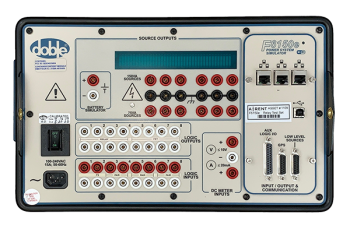

Doble F6150e

Doble F6150e

Power System Simulator

Details

  • Performs standard relay calibration and verification testing of high burden and microprocessor relays
  • Analog testing of 1 A and 5 A protection devices
  • Performs state simulation and transient testing
  • Tests 0.2-class metering CTs and transducers
  • Implements end-to-end testing of communications-based schemes with GPS time syncing
  • Maximum of 12 sources (six voltage, six current) configurable for bench testing and proof-of-concept testing for complicated relaying schemes
  • Delivers full VA power with resistive, inductive and capacitive loads at maximum current rating (6 x 35, 3 x 70, 1 x 210 A)

Product Data Sheet (PDF)
