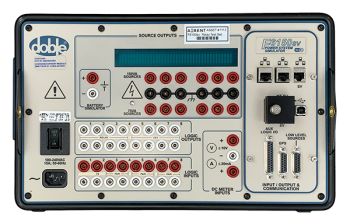

Doble F6150sv
Three Phase Relay Test Set
Details
- Simulate three streams of IEC 61850 9-2LE sampled values through one fiber-optic port and one copper (RJ45) port
- Simulates (publishes) and subscribes to IEC 61850 GOOSE messages involving multiple IEDs
- Performs standard relay calibration and verification testing of high burden and microprocessor relays
- Analog testing of 1A and 5A protection devices
- Performs state simulation and transient testing
- Tests 0.2-class metering CTs and transducers
- Implements end-to-end testing of communications-based schemes with GPS time syncing
- Maximum of 12 sources (six voltage, six current) configurable for bench testing and proof-of-concept testing for complicated relaying schemes
- Delivers full VA power with resistive, inductive and capacitive loads at maximum current rating (6 x 35, 3 x 70, 1 x 210A)
- Available to rent, lease, buy used or buy new
- If you own this unit, A-Rent offers NIST traceable calibration services with a 3-day turnaround time
