Fluke 1777

Description

Power quality is evaluated by measuring voltage, current, and frequency for deviations that can affect connected equipment. Nonlinear loads, variable-frequency drives, renewable energy systems, EV chargers, and other power electronics can introduce harmonics, transients, voltage dips, swells, and other disturbances that affect equipment performance and system reliability.

Diagnosing these conditions requires measurements taken while the electrical system is operating under load. A power quality study records when a disturbance occurs, its severity, and what was happening on the system at the time. By logging voltage, current, power, energy, harmonics, and power quality events, technicians can compare recorded data with breaker trips, equipment failures, load changes, excessive energy use, and other operating problems.

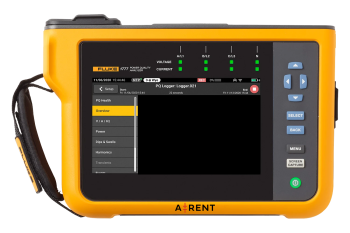

The Fluke 1777 is a three-phase power quality analyzer used for troubleshooting, energy surveys, harmonic studies, and long-term power quality logging. It automatically records more than 500 parameters while displaying live measurements in the field. Its 20 MHz sampling rate records fast voltage transients that slower analyzers may not resolve, and it measures power quality parameters in accordance with IEC 61000-4-30 Class A.

Every Fluke 1777 rental from A-Rent is functionally tested and shipped with the current probes and voltage leads specified for the application. Flexible current probes, clamp-on current transformers, extension cables, auxiliary input adapters, and other power quality test equipment are also available. A-Rent’s engineer-led support team can remotely assist with equipment setup, system configuration, logging parameters, and data retrieval.

FAQs

When should you use a Fluke 1777 three-phase power quality analyzer?

The Fluke 1777 is used for power quality troubleshooting, electrical commissioning, preventive maintenance, energy surveys, load studies, harmonic studies, and long-term monitoring. It is especially useful for intermittent problems that may not occur during a brief inspection. Recording the system under normal operating loads gives technicians the data needed to identify when an event occurred and what was happening at the time.

What electrical problems can the Fluke 1777 identify?

The Fluke 1777 can identify:

• Voltage dips, swells, interruptions, and unbalance
• Fast voltage transients
• Voltage and current harmonic distortion
• Flicker
• Inrush current and load-related events
• Poor power factor, unexpected demand, and excessive current
• Conditions associated with nuisance breaker trips or equipment failures

The analyzer automatically records more than 500 power quality parameters, reducing the risk that an important parameter is omitted during setup.

Can the Fluke 1777 perform energy surveys and load studies?

Yes. The Fluke 1777 records voltage, current, active power, reactive power, apparent power, power factor, and energy consumption. These measurements can be used for energy surveys, load testing, capacity planning, and evaluating inefficient equipment or operating conditions. Technicians can compare power and energy data with recorded events to see how the electrical system responds as loads are added, removed, or adjusted.

What accessories are needed to use a Fluke 1777?

A typical Fluke 1777 setup includes:

• Voltage test leads and connection clips
• Flexible current probes or clamp-on current transformers
• Current probe extension cables when required
• Communication accessories for remote access or data transfer

A-Rent supplies each Fluke 1777 rental with current probes, voltage leads, and application-specific accessories selected for the electrical system and current range being measured.

How do you connect a Fluke 1777 to an electrical system?

The Fluke 1777 connects to the conductors being measured using voltage leads and current probes. The correct connection depends on the system topology, measurement location, and what is being investigated. Supported configurations include single-phase, split-phase, three-phase wye, and three-phase delta systems.

Measurements can be taken at the service entrance, switchgear, distribution panels, or individual loads. A-Rent can supply the leads, probes, and connection accessories required for the application. Connections should be made by qualified personnel following the instrument instructions and applicable site safety procedures.

How is the Fluke 1777 powered in the field?

The Fluke 1777 can be powered directly from the measurement circuit, eliminating the need for a separate outlet or extension cord. Its internal battery provides approximately 90 minutes of operation, allowing technicians to access recorded data when the analyzer is disconnected from a live system. The instrument can also be powered through USB-C.

Can multiple Fluke 1777 analyzers be used in the same power quality study?

Yes. Multiple Fluke 1777 analyzers can be installed at the service entrance, switchgear, distribution panels, and individual loads to compare events across an electrical distribution system. This can help locate the source of a disturbance and determine how it propagates through the system. When GPS time synchronization is configured, recorded events from multiple analyzers can be aligned for more precise comparison. A-Rent can provide multiple analyzers and the accessories required for facility-wide power quality studies.

How do you download and analyze Fluke 1777 data?

Fluke 1777 data can be transferred through USB, Wi-Fi, LTE, or wired Ethernet. Available interfaces depend on the analyzer's configuration. Fluke Energy Analyze Plus software is included for reviewing measurements, comparing trends, analyzing power quality events, and creating reports. The software also supports power quality and harmonic reporting based on standards including EN 50160 and IEEE 519.

Is technical support available with a Fluke 1777 rental?

Yes. A-Rent's engineer-led support team can assist with system configuration, current probe selection, measurement setup, logging parameters, and data retrieval. Remote support is available for studies involving multiple measurement points, intermittent events, or unfamiliar electrical configurations.

How does A-Rent ensure its Fluke 1777 analyzers are project ready?

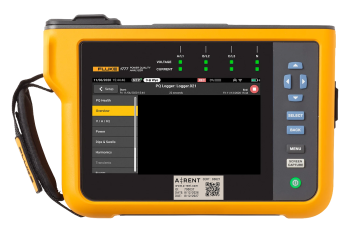

Every Fluke 1777 is functionally tested before each rental. A-Rent inspects the analyzer, current probes, voltage leads, and other supplied accessories to confirm the kit is complete and operating as expected. For customer-owned Fluke 1777 analyzers, A-Rent also offers NIST-traceable calibration with a three-day turnaround time.

What is the voltage limit of the Fluke 1777?

The Fluke 1777 measures up to 1,000V for direct connections. For 4,160V systems, A-Rent offers the PowerSight 5KVP probe set.

Can the Fluke 1777 measure DC current?

Yes. When used with the Fluke 80i-2010s-EL clamp, the Fluke 1777 can measure current up to 2,000Adc. This makes the unit well suited for UPS commissioning and other applications that require DC current measurements.

Can the Fluke 1777 be installed outdoors?

The Fluke 1777 is not intended for an unprotected outdoor installation. A-Rent offers a lockable outdoor enclosure that protects the analyzer during outdoor monitoring. The enclosure includes mounting hardware and an access port for the voltage leads and current probes.

I'm familiar with the Fluke 1750. Is the Fluke 1777 a better option?

Yes. The Fluke 1777 is the newer and better alternative. It added a built-in touchscreen, automatic connection checking and correction, live measurements, and 20 MHz transient sampling. A-Rent’s engineers can help you transpose an existing Fluke 1750 test protocol into the corresponding Fluke 1777 setup and logging parameters.
