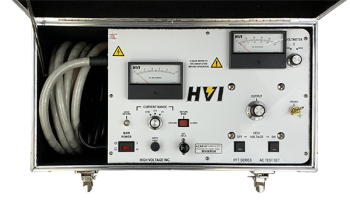

High Voltage Inc PFT-503CM

High Voltage Inc PFT-503CM

50 kV AC Hipot

Details

  • Convenient one-piece field portable design
  • Secondary connected 2 Range Voltmeter: 0 - 25 / 50 kV AC
  • 3 Range Current Meter: 0 – 1 mA AC with x1, x10, and x100 multipliers
  • Fixed overload set to 120% of variable transformer rated output current
  • Transit protected meters prevent meter damage between test sites
  • Guard/Ground circuit for accurate leakage current measurement
  • 20 ft shielded output and return cables
  • Gapped core transformer design for capacitive load compensation
  • Zero Start and External safety Interlock provisions

Product Data Sheet (PDF)
